Plan code:- LG750/100
Building footprint: 52.5qM
L1 floor area:48 SqM
Building consent required
contact us for more info on this plan





What's included in stock
plan set of 32 sheets.

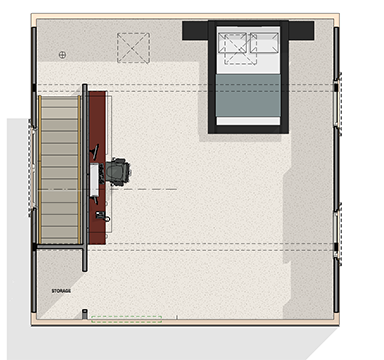

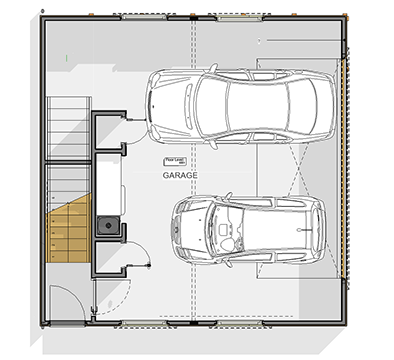

  • Ground floor dimension plan
  • Level one floor dimension plan
  • Garage slab plan & P&D set out plan
  • First floor sub-floor framing plan
  • Bathroom layout & wet area detailing
  • Roof plan
  • Roof framing plan

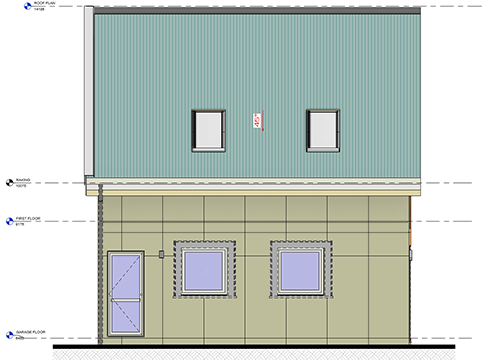

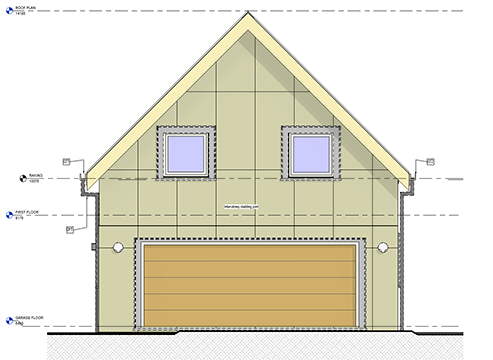

  • Elevations x4

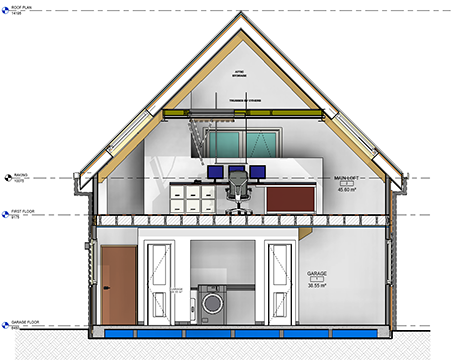

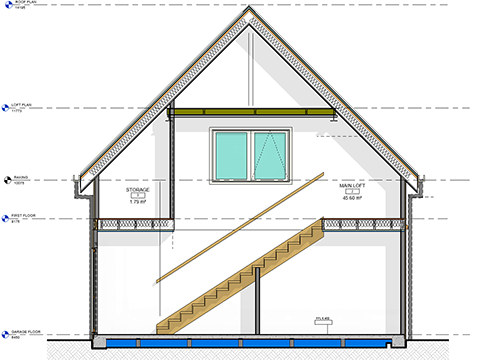

  • Sections x4
  • Slab edge threshold details
  • Typical joinery details
  • Interior stair plan /section & details`
  • Typical Shadow-Clad cladding penetration details
  • Roofing flashing details
  • Main roofing /floor steel connection details
  • Typical wet area details to bathroom
  • Standard NZS3604 & E2/AS1 fixing schedules & details.
  • Material costing schedules

4k 3D RENDERiING LOFT HOUSE INTERIOR

Why choose a Stock Plan?

1. Reduced Design Costs.
2. Efficient Use of Architectural Services
3. Accelerated Project Time-line
4. Scalability and Flexibility

What's not included in
our stock plans sets.

Purchase options available >65Sqm Designs

    • OPTION A:-
      PDF SET- $549.00

    • OPTION B-
      RVT BASE FILE- $949 (GST incld)
      Provides flexibility for external consultants to make any necessary changes prior to lodging at local authorities?
