Plan code:- LG650/94
Building footprint: 42SqM
L1 floor area:42SqM+10SqM Deck
Building consent required
contact us for more info on this plan



What's included in stock
plan set of 32 sheets.

  • Ground floor dimension plan
  • Level one floor dimension plan

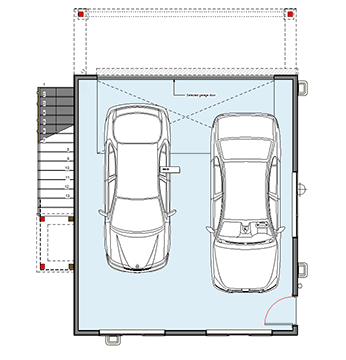

  • Garage slab plan & P&D set out plan
  • First floor sub-floor framing & P&D plan
  • Grd & 1st Floor Preliminary bracing data
  • Bathroom layout & wet area detailing
  • Roof plan
  • Roof framing plan

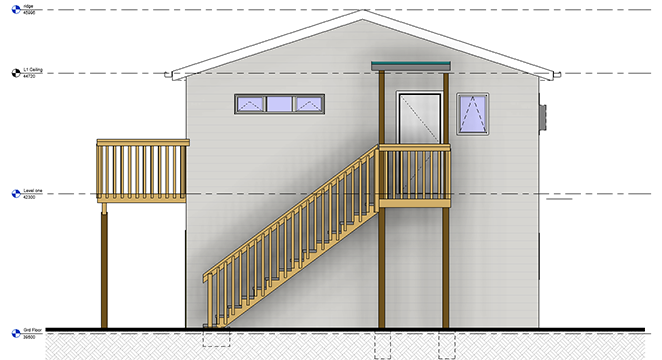

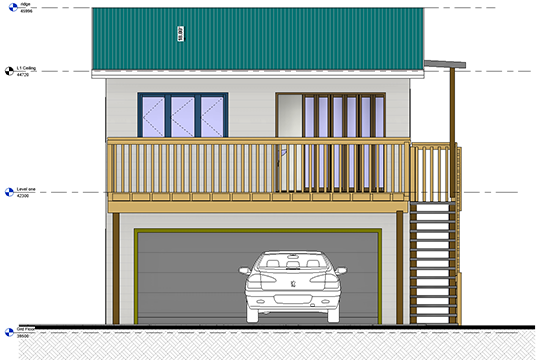

  • Elevations x4
  • Sections x4
  • Slab edge threshold details
  • Typical joinery details`
  • Typical cladding penetration details
  • Typical cladding details
  • Manufacturers roofing details
  • Exterior timber stair details
  • Main roofing and steel connection details
  • Typical wet area details to bathroom
  • Standard NZS3604 & E2/AS1 fixing schedules
    & details.
  • Material costing schedules

4k 3D RENDERiING LOFT HOUSE INTERIOR Why choose a Stock Plan?

1. Reduced Design Costs.
2. Efficient Use of Architectural Services
3. Accelerated Project Time-line
4. Scalability and Flexibility

What's not included in
our stock plans sets.



Purchase options available >65Sqm Designs

    • OPTION A:-
      PDF SET- $549.00

    • OPTION B-
      RVT BASE FILE- $949 (GST incld)
      Provides flexibility for external consultant to make any necessary changes prior to lodging at local authorities?
