120SQM_ EXTERIOR 3D RENDERED 4k 4k 3D RENDERED LOFT HOUSE & DOUBLE GARAGE
2 1 1 2 1
Plan code:- LG750/120
Building footprint: 54SqM
L1 floor area:54SqM+12SqM Deck
Building consent required
contact us for more info on this plan




What's included in stock
plan set of 32 sheets.

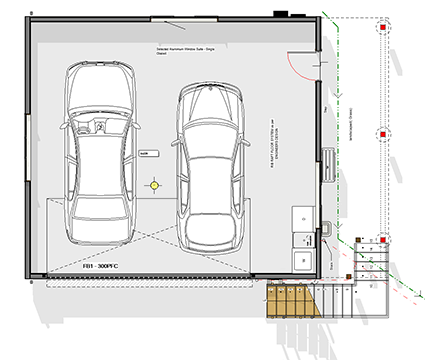

  • Ground floor plan
  • Ground floor dimension plan

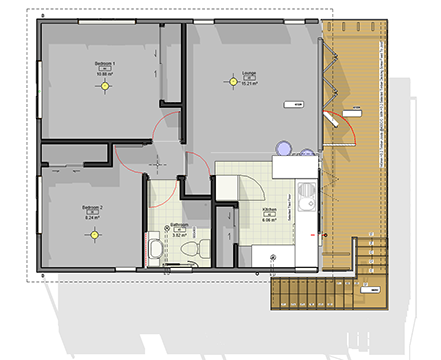

  • Level one floor  plan
  • Level one floor dimension plan
  • Garage slab plan & P&D set out plan
  • First floor sub-floor framing plan
  • Bathroom layout & wet area detailing
  • Roof plan
  • Roof framing plan

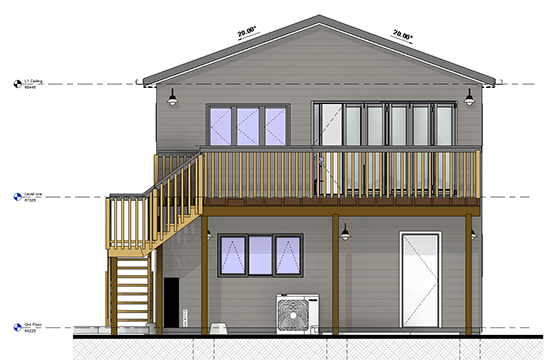

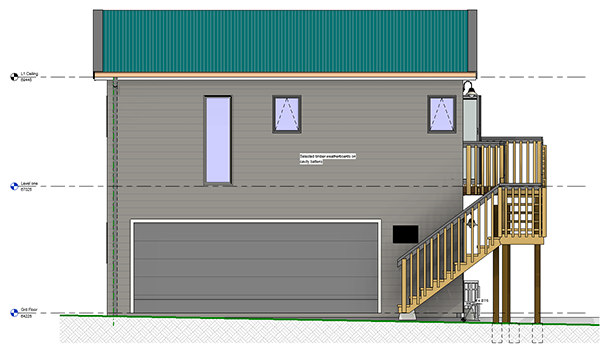

  • Elevations x4

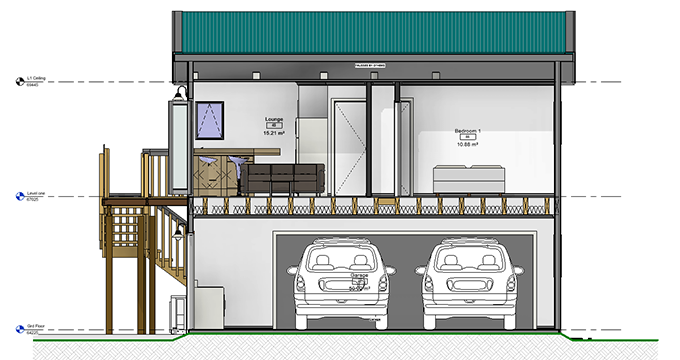

  • Sections x4
  • Slab edge threshold details
  • Typical joinery details`
  • Typical W/B cladding penetration details
  • Roofing flashing details
  • External timber stair details
  • Main roofing details
  • Typical wet area details to bathroom
  • Standard NZS3604 & E2/AS1 fixing schedules & details.
  • Material costing schedules

4k 3D RENDERED LOFT HOUSE & DOUBLE GARAGE

Why choose a Stock Plan?

1. Reduced Design Costs.
2. Efficient Use of Architectural Services
3. Accelerated Project Time-line
4. Scalability and Flexibility

What's not included in
our stock plans sets.

Purchase options available >65Sqm Designs

  • OPTION A:-
    PDF SET- $599.00

  • OPTION B-
    RVT BASE FILE- $999,00 (GST incld)
    Provides flexibility for external consultants to make any necessary changes prior to lodging at local authorities?
