65SQM_Minor dwelling 2 bedroom-kitchen-bathroom 4K 3D RENDERING-Minor dwelling
1 1 1 1 1
Plan code:- MD650/65C
Building footprint: 65SqM

Building consent required
contact us for more info on this plan




What's included in stock
plan set of 24 sheets.

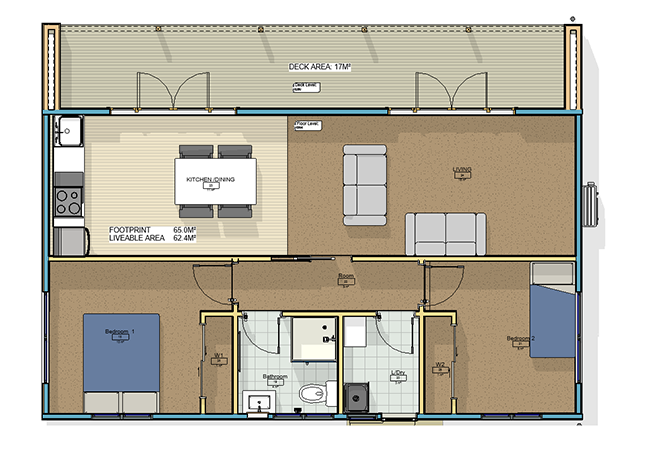

  • Ground floor plan
  • Ground floor dimension plan
  • Proposed Rib Raft slab plan
  • Proposed ceiling / lighting plan
  • Garage slab plan & P&D set out plan
  • First floor sub-floor framing plan
  • Bathroom layout & wet area detailing
  • Roof plan
  • Roof framing plan

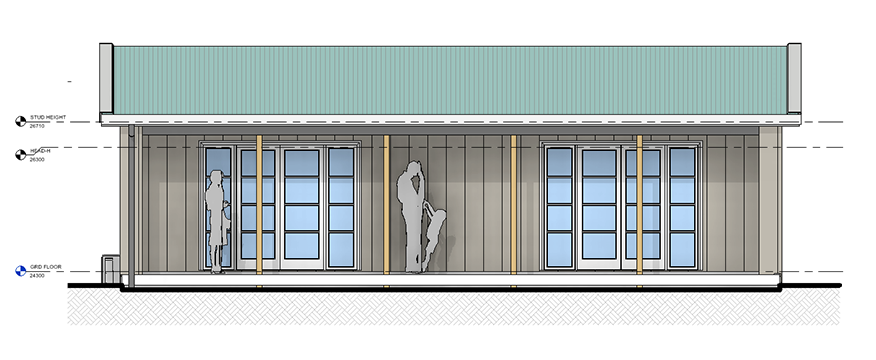

  • Elevations x4
  • Proposed framing elevations x4

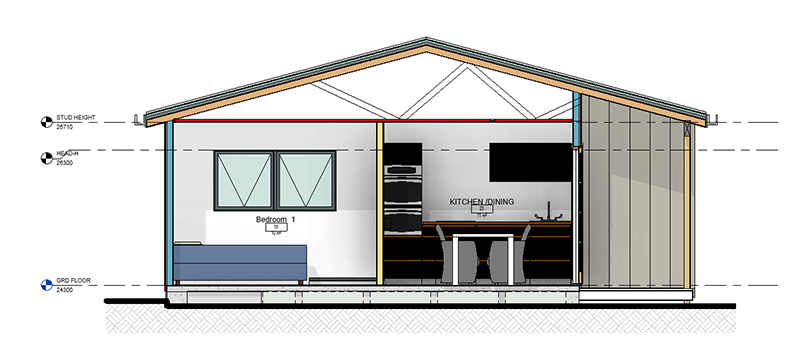

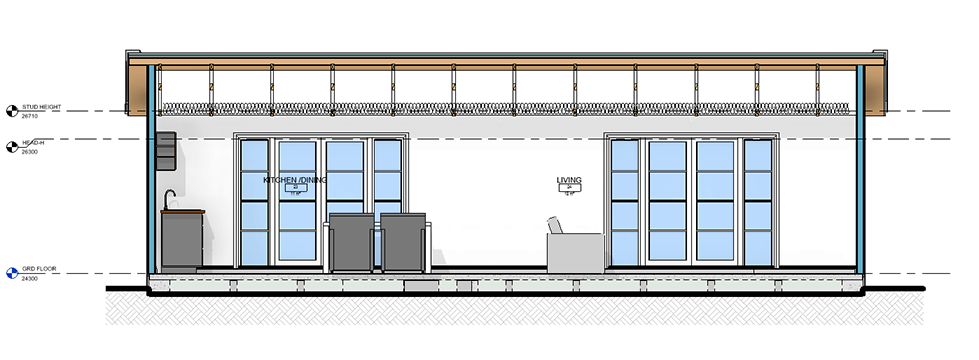

  • Sections x4
  • Typical joinery details`
  • Typical W/B cladding penetration details
  • Roofing flashing details
  • E2/AS1 Compliant & NZS code compliant detailing
  • Material costing schedules

Why choose a Stock Plan?

1. Reduced Design Costs.
2. Efficient Use of Architectural Services
3. Accelerated Project Time-line
4. Scalability and Flexibility

What's not included in
our stock plans sets.



Purchase options available <65Sqm Designs

    • OPTION A:-
      PDF SET- $549.00

    • OPTION B-
      RVT BASE FILE- $700+GST- complete RVT File
      Provides flexibility for external consultants to make any necessary changes prior to lodging at local authorities?
